DRI-CHEM from FUJIFILM is a dry chemistry analyzer which can perform multiple test parameters of Clinical Chemistry. It has a built-in auto-pipetting system, requires no calibration and no water, providing easy preparation and maintenance. The new DRI-CHEM NX500 delivers results using a simple 3-step procedure. With its quick, easy operation and compactness, "Real Time and Borderless" Clinical Chemistry is made possible.
  • Product Description
  • Features & Benefits
  • Downloads

Simple 3-step procedure

Fully Automated Procedure
1) Set the slide (Dry Slide Reagents).     2) Set the sample.    3) Press START.    No Parameter Input Required Information of the parameter is incorporated in the bar code printed on the back of every slide

Set the slide
(Dry Slide Reagents)

Set the sample

Press START

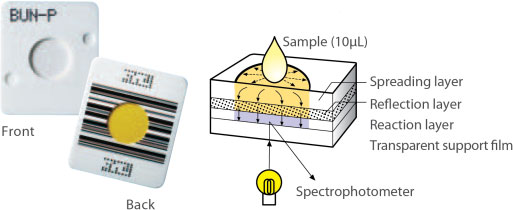

Colorimetric method slide
(Enzymes, General chemistry, and Immunology)
This multilayered slide is composed of dry chemical ingredients needed for the reaction and
other functional materials. It quantifies enzymes and chemicals using colorimetric method.
  • Composition of multilayered analytical film

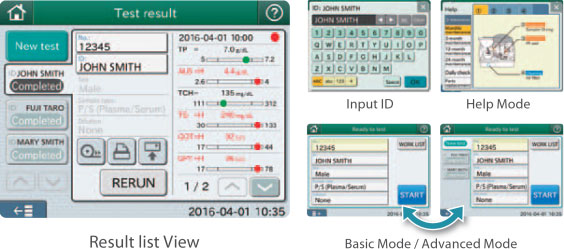

Easy operation by touch screen

5.7 inch VGA, 640 ✕ 480. Qwerty touch Key board. Basic Mode / Advanced Mode are available according to user preference. (Basic Mode: displays operation procedure for one sample only. Advanced Mode: displays operation procedure for one sample and measurement status for previous measured samples.)

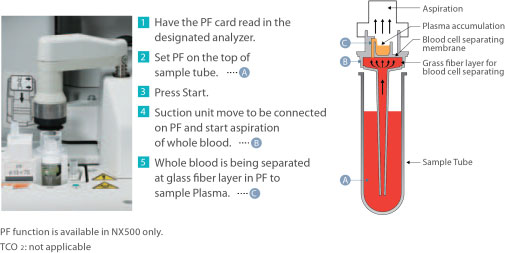

No pre-treatment of sample required

Plasma Filter (PF) can cut the turn around time and the pre-treatment process of the sample. It can generate plasma sample by aspirating and separating the whole blood inside the PF within 1 minute. Just set the PF on top of the sample tube and press START.

Only 10µL/Test

  • Each test needs only 10µL of sample.
  • (CRP needs 5µL/test, ISE needs 50µL/3 tests).
  • Manual pipetting can be also performed when less sample available.
  • Less invasive for newborn at NICU.


Automatic dilution


Dilution, a time consuming process, is also automated in FUJI DRI-CHEM. Just set the ratio of dilution and press START. Dilution test also can be performed simultaneously with the regular tests, requiring no separation of tests.
DRI-CHEM-NX500.pdf
